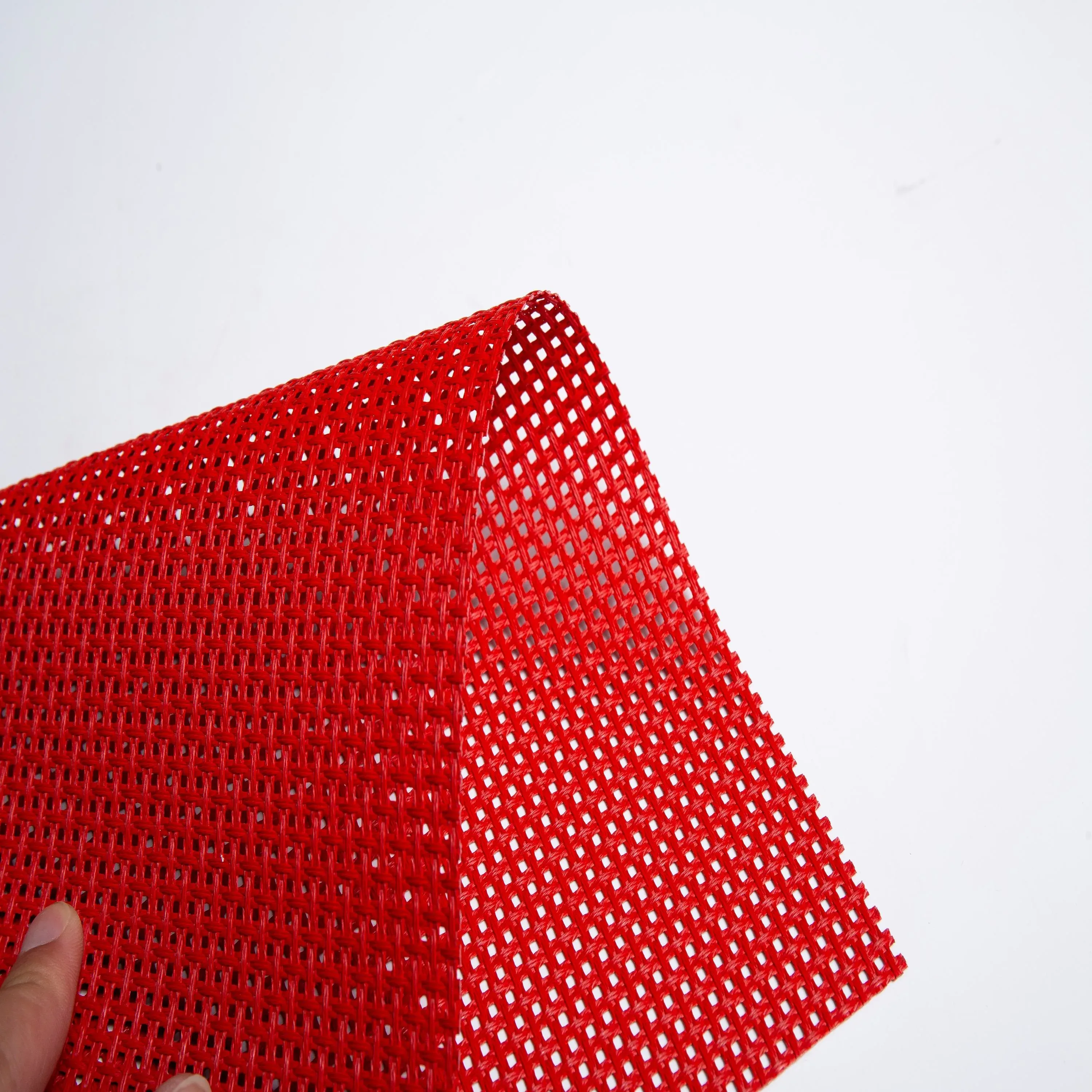

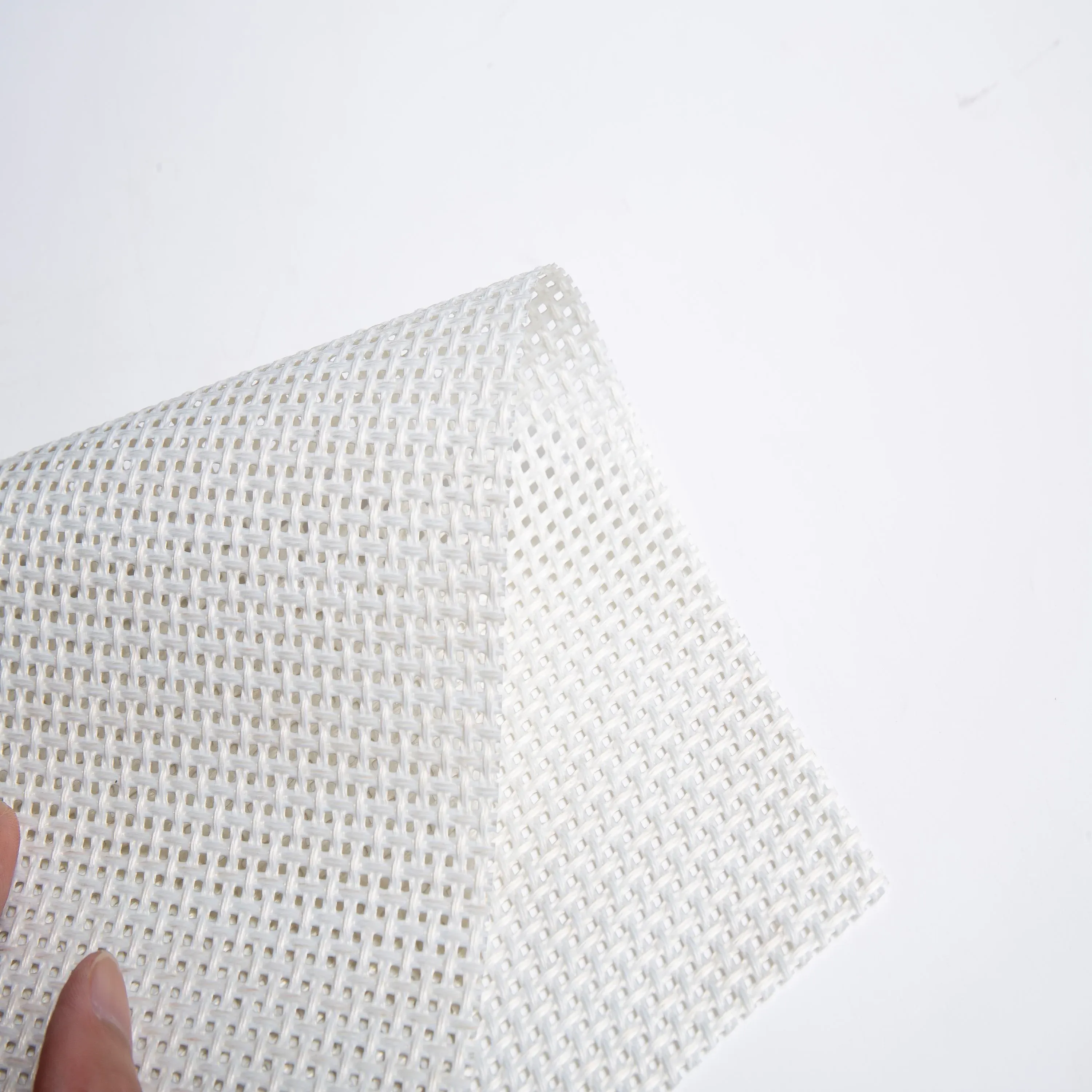

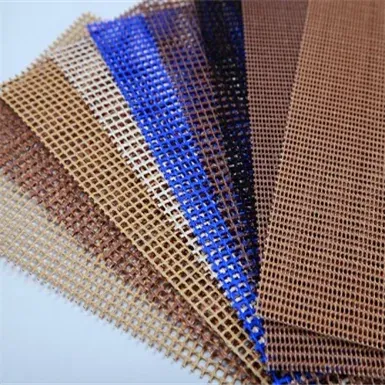

Industrial PTFE Mesh for Breathable Chemical-Resistant Conveying
PTFE-coated fiberglass open mesh for airflow, drainage and release applications; supplied as mesh, cut parts or specified conveyor belts.
Product overview
PTFE-coated fiberglass open mesh for airflow, drainage and release applications; supplied as mesh, cut parts or specified conveyor belts.
Product highlights
- Open PTFE-coated fiberglass mesh for airflow and drainage
- Low-friction release surface
- Aperture selected for product support and process conditions
- Roll, cut-part and fabricated-belt options
- Direct flame contact is not recommended
Procurement data
Technical specifications
Final specifications are confirmed against operating conditions and order requirements.
| Specification | Details |
|---|---|
| Product Name | Industrial PTFE Mesh |
| Material | PTFE-coated E-glass fiberglass open mesh; aperture, coating grade, edge treatment and final construction must be confirmed |
| Surface | Open PTFE-coated fiberglass mesh release surface |
| Reinforcement | Open-weave E-glass fiberglass mesh |
| Temperature Range | Recommended continuous operating temperature: up to 260°C / 500°F for the selected PTFE-coated fiberglass mesh. Direct flame contact is not recommended. |
| Airflow / permeability | Open mesh |
| Food Contact / Documents | Food-contact suitability is available only for a selected, documented final PTFE-coated mesh grade and intended use. |
| Non-stick Performance | Low-friction PTFE release surface for process conveying |
| Sample Availability | Sample availability is confirmed after the material and specification review. |
| Lead Time | Lead time is confirmed after the selected material, specification, quantity, processing and packaging are approved. |
| Applications | Industrial drying conveyors, Textile curing lines, Coating and laminating processes, Washing and drainage belts, Chemical process screens, Air-permeable release liners |
Selection support
Guides for this product
- Custom PTFE Mesh: Rolls, Sheets, Belts & MOQ
Specify PTFE open mesh for drying, curing and process conveying. Compare rolls from 10 m², cut sheets from 100 pieces and conveyor belt requirements.
- PTFE Mesh Conveyor Belts for UV Curing: A Process-Based Selection Guide
Select a PTFE mesh conveyor belt for UV curing by part support, heat exposure, usable width and machine fit. Plan the measurements needed before approving a replacement.
- PTFE Conveyor Belt Joints: How to Choose the Right Splice
Choose a PTFE belt splice by contact profile, airflow, pulley geometry and installation access. Compare joint types and prepare a machine-specific belt specification.
End-use fit
Applications
Typical purchasing use cases for this product family.
- Industrial drying conveyors
- Textile curing lines
- Coating and laminating processes
- Washing and drainage belts
- Chemical process screens
- Air-permeable release liners
Purchasing questions
Frequently asked questions
Product-specific answers for sampling, customization and production planning.
Which aperture should I choose for an industrial drying line?
Choose the aperture around the smallest part being conveyed while retaining the airflow and drainage your process needs; 2 mm, 4 mm and 10 mm are common starting points.
Can the mesh be finished as an endless belt?
Yes. The mesh can be fabricated with reinforced edges, tracking guides and a joint style matched to the conveyor.
Is PTFE mesh resistant to process chemicals?
Its PTFE surface provides strong resistance to many common process chemicals and moisture, making it useful for demanding industrial environments.
How are packaging, samples and lead time confirmed for Industrial PTFE Mesh?
Roll wrapping, reinforced edge protection and labelled export cartons are specified with the confirmed belt or roll format. Sample availability is confirmed after the material and specification review. Lead time is confirmed after the selected material, specification, quantity, processing and packaging are approved. MOQ, packing configuration and delivery schedule are confirmed after the final material, dimensions and quantity are approved.
