PTFE Coated Fiberglass Mesh Conveyor Belt for Food and Industrial Lines
PTFE-coated fiberglass open mesh for airflow, drainage and release applications; supplied as mesh, cut parts or specified conveyor belts.
Product overview
PTFE-coated fiberglass open mesh for airflow, drainage and release applications; supplied as mesh, cut parts or specified conveyor belts.
Product highlights

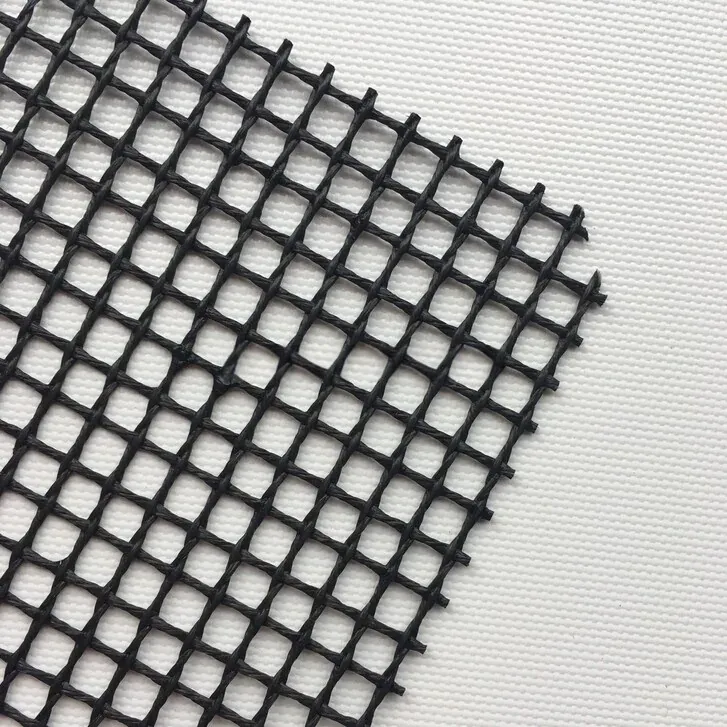

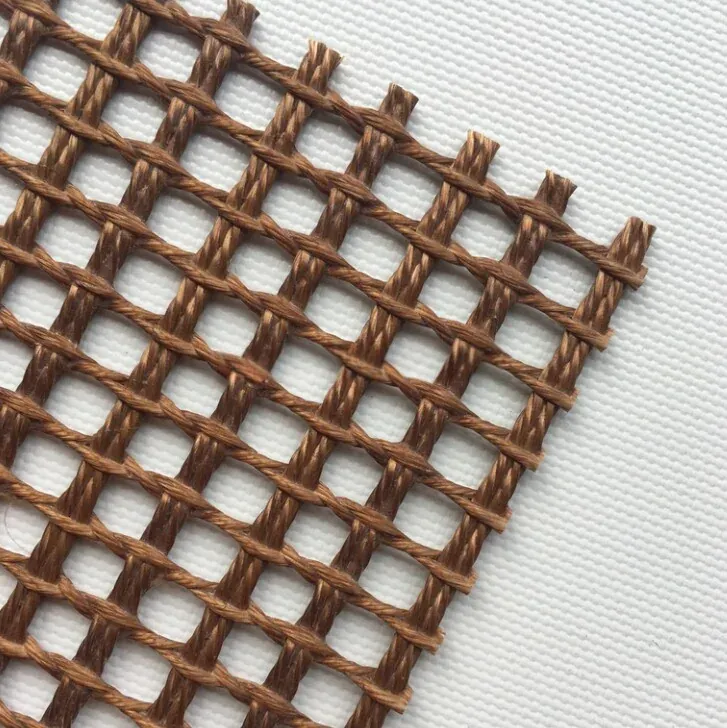

- Open PTFE-coated fiberglass mesh for airflow and drainage
- Low-friction release surface

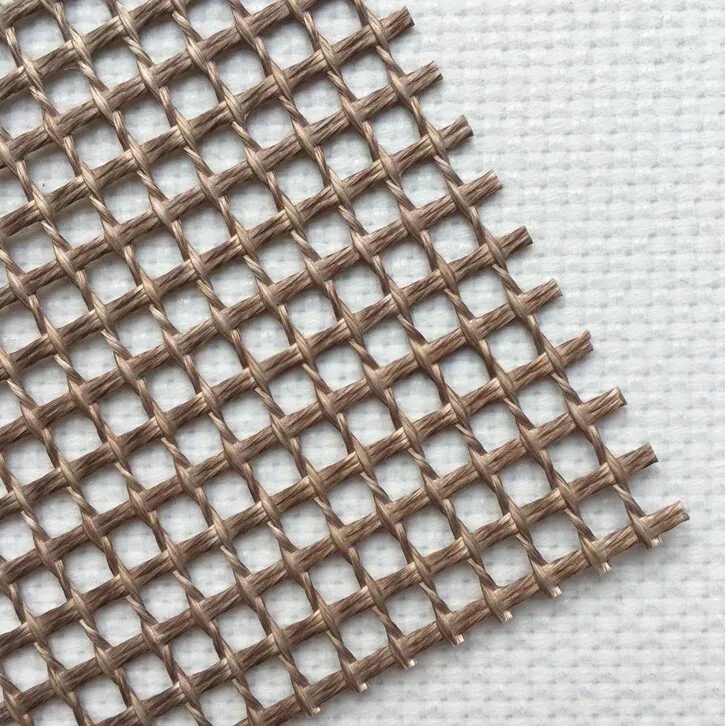

- Aperture selected for product support and process conditions
- Roll, cut-part and fabricated-belt options
- Direct flame contact is not recommended
Procurement data
Technical specifications
Final specifications are confirmed against operating conditions and order requirements.
| Specification | Details |
|---|---|
| Product Name | PTFE Coated Fiberglass Mesh Conveyor Belt |
| Material | PTFE-coated E-glass fiberglass open mesh; aperture, coating grade, edge treatment and final construction must be confirmed |
| Surface | Open PTFE-coated fiberglass mesh release surface |
| Reinforcement | Open-weave E-glass fiberglass mesh |
| Temperature Range | Recommended continuous operating temperature: up to 260°C / 500°F for the selected PTFE-coated fiberglass mesh. Direct flame contact is not recommended. |
| Airflow / permeability | Open mesh |
| Food Contact / Documents | Food-contact suitability is available only for a selected, documented final PTFE-coated mesh grade and intended use. |
| Non-stick Performance | PTFE-coated mesh surface for clean release and easy sanitation |
| Sample Availability | Sample availability is confirmed after the material and specification review. |
| Lead Time | Lead time is confirmed after the selected material, specification, quantity, processing and packaging are approved. |
| Applications | Bakery tunnel ovens, Snack cooling conveyors, Fruit and vegetable drying, Frozen-food processing, Heat-shrink packaging, Screen-print drying equipment |
Selection support
Guides for this product
- Custom PTFE Mesh: Rolls, Sheets, Belts & MOQ
Specify PTFE open mesh for drying, curing and process conveying. Compare rolls from 10 m², cut sheets from 100 pieces and conveyor belt requirements.
- PTFE Mesh Conveyor Belts for UV Curing: A Process-Based Selection Guide
Select a PTFE mesh conveyor belt for UV curing by part support, heat exposure, usable width and machine fit. Plan the measurements needed before approving a replacement.
- PTFE Conveyor Belt Joints: How to Choose the Right Splice
Choose a PTFE belt splice by contact profile, airflow, pulley geometry and installation access. Compare joint types and prepare a machine-specific belt specification.
End-use fit
Applications
Typical purchasing use cases for this product family.
- Bakery tunnel ovens
- Snack cooling conveyors
- Fruit and vegetable drying
- Frozen-food processing
- Heat-shrink packaging
- Screen-print drying equipment
Purchasing questions
Frequently asked questions
Product-specific answers for sampling, customization and production planning.
What mesh opening works best for bakery products?
Fine 1 x 1 mm or 2 x 2 mm mesh supports small items, while 4 x 4 mm mesh is a versatile choice for airflow on trays and cooling lines.
Can you add tracking guides and reinforced edges?

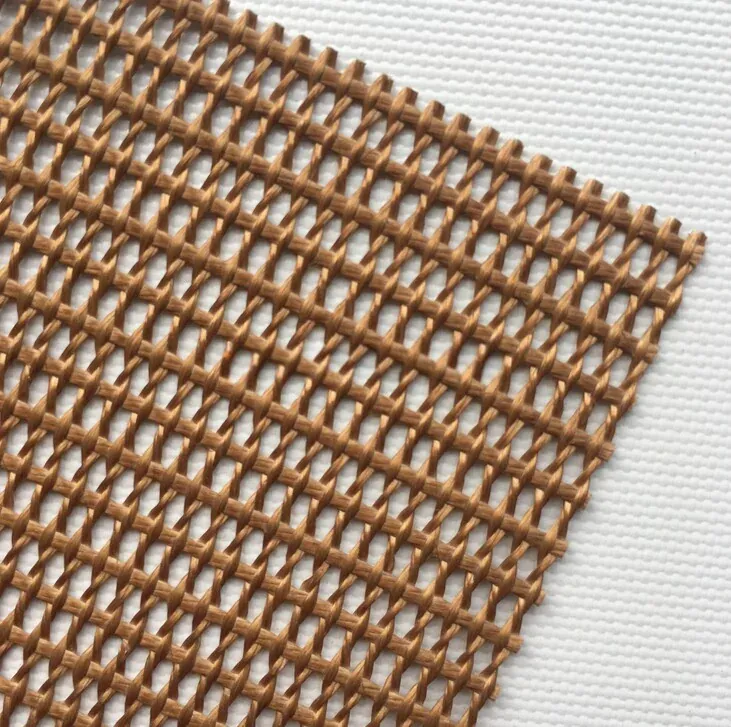

Yes. Belts can be supplied with edge binding plus tracking strips or side guides to suit the conveyor.
Can the belt be supplied with an endless joint?
Yes. Endless, laced and other project-specific joint options are available according to installation and maintenance requirements.
How are packaging, samples and lead time confirmed for PTFE Coated Fiberglass Mesh Conveyor Belt?
Roll wrapping, reinforced edge protection and labelled export cartons are specified with the confirmed belt or roll format. Sample availability is confirmed after the material and specification review. Lead time is confirmed after the selected material, specification, quantity, processing and packaging are approved. MOQ, packing configuration and delivery schedule are confirmed after the final material, dimensions and quantity are approved.
Discuss your requirement
Request a quote for PTFE Coated Fiberglass Mesh Conveyor Belt
Share dimensions, quantity, operating conditions, packaging and documentation needs. We will follow up with the next specification steps.
